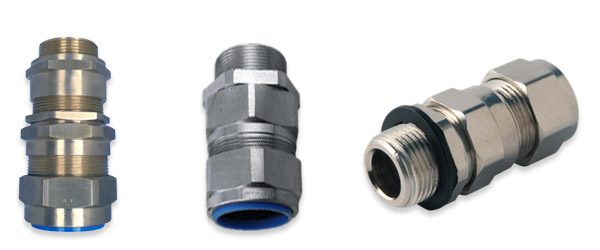

E1W Cable Glands Aluminium

Brass E1W Cable Glands

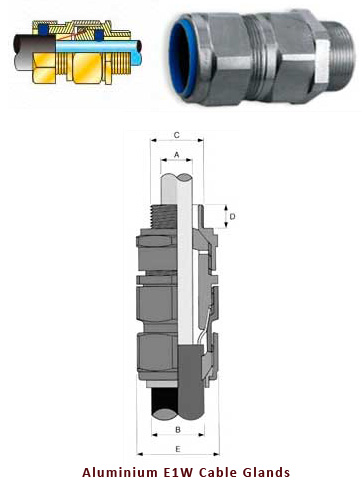

Gland Size	Standard Entry Threads "C" other options/sizes			Min. Thread Length "D"							Armour Wire Dia.	Max. Across Corner Dia "E"
					Seal Ranges
					Cable Dia. "A"		Cable Diameter "B'
	Metric	NPT	PG		Cable Dia. "A"		Standard Seal		Thick Seal
	Metric	NPT	PG		Min.	Max.	Min.	Max.	Min.	Max.
20/16	20	"	11	15	3.1	8.6	8.0	13.4	5.5	9.9	0.9	24.4
20S	20	"	13.5	15	6.1	11.6	11.4	15.9	7.0	12.4	0.9/ 1.25	26.6
20	20	"	16	15	6.5	13.9	15.0	20.9	11.1	17.9	0.9/ 1.25	33.3
25	25	3/4"	21	15	11.1	19.9	20.3	27.4	15.0	23.9	1.25/ 1.60	40.5
32	32	1"	29	15	17.0	26.2	26.0	33.9	23.0	29.9	1.60/ 2.00	51.0
40	40	1-1/4"	36	15	22.0	32.1	31.0	40.4	26.6	35.9	1.60/ 2.00	61.0
50S	50	1-1/2"	36	15	29.5	38.1	36.5	46.7	32.9	42.4	2.00/ 2.50	66.5
50	50	2"	42	15	35.6	44.0	43.0	53.1	38.3	49.9	2.00/ 2.50	77.7
63S	63	2"	48	15	40.1	49.9	48.9	59.4	44.6	55.9	2.50	83.2
63	63	2-1/2"	-	15	47.2	55.9	58.0	65.9	51.5	58.9	2.50	88.7
75S	75	2-1/2"	-	15	52.8	61.9	60.6	72.1	56.4	68.9	2.50	101.6
75	75	3"	-	15	59.1	67.9	64.9	78.5	62.7	74.9	2.50/ 3.15	111.1
90	90	3"	-	-	66.6	79.3	76.0	90.4	64.2	79.3	3.15	128.6
All Dimensions in Millimeters

Features		To BS 6121 pt. 1 suitable for SWA or rubber sheathed cables. Outer seal grips bedding layer of cable. for use in most climatic conditions Weather proof and water proof. Design has separate armour lock rings. can be supplied with integral earth facility. E1W glands are weatherproof glands and can be used in corrosive conditions when protected with shroud. Positive armour locking, effective earth continuity, increased mechanical strength. All the E1W cable glands and gland kits packs pf E 1 W Cable Glands are available with accessories and Earth Tags.
Gland sizes		20 mm to 75 mm (S & L) 20mm 25mm 32mm 40mm 16mm 50mm 63mm 75mm 90mm 1/2 3/4 1 11/4 11/2 2 2/12 NPT M12 m16 M20 M25 M32 M40 M50 M63 M75 threaded cable glands Metric fittings
IP Rating		IP 66

We are one of the leading manufacturers suppliers exporters of E1W Cable Glands Aluminium. Please contact us for all your needs of E1W Cable Glands Aluminium from Jamnagar- India at best pricing".
