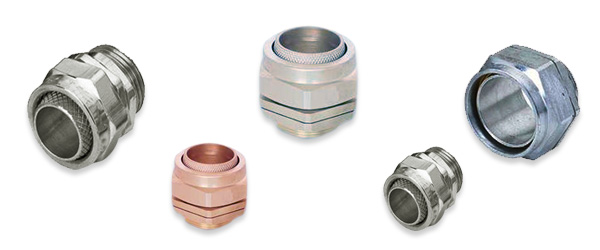

BW Cable Glands Aluminium

BW Cable glands Aluminium

BW Cable Glands Aluminium
BW Cable glands Aluminium

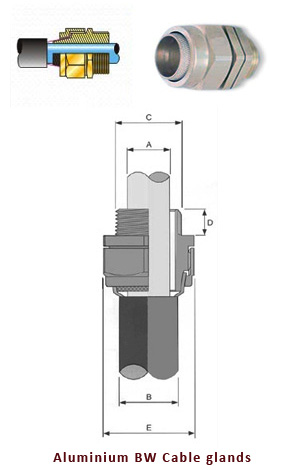

B W Cable Gland
Gland Size Metric Thread "C" Min Thread Length "D"
Cable Dia. "A" Max.
Cable Dia. "B" Max.
Armour Wire Dia. Main across corner Dia. "E"
20S
20
10
11.6
16.1
0.9/1.25
24.4
20
20
10
13.9
21.1
0.9/1.25
30.0
25
25
10
19.9
27.4
1.25/1.60
36.0
32
32
10
26.2
34.4
1.60/2.00
44.5
40
40
15
32.1
42.4
1.60/2.00
56.3
50S
50
15
38.1
50.1
2.00/2.50
63.4
50
50
15
44.0
55.7
2.00/2.50
72.1
63S
63
15
50.0
62.4
2.50
83.7
63
63
15
55.9
68.2
2.50
88.7
75S
75
15
61.9
76.8
2.50
99.8
75
75
15
67.9
82.9
2.50/3.15
105.3
All Dimensions in Millimeters
Features BW Cable Glands Aluminium BW Cable Glands 2 Cable Glands Part To BS 6121 pt. 1 most suitable for  single  wire  armored, plastic of rubber (Elastomer) sheathed cables. Used in dry indoor conditions. No loose parts and easy to install. Save times & money. Can be supplied with integral earth facility. indoor applications to be used with SWA  cables armoured wire cables
Gland size 20mm 25mm 32mm 40mm 16mm 50mm 63mm 75mm 90mm 1/2 3/4 1 11/4 11/2 2 2/12 NPT threaded cable glands Metric fittings
IP Rating IP 54

We are one of the leading manufacturers suppliers exporters of BW Cable Glands Aluminium. Please contact us for all your needs of BW Cable Glands Aluminium from Jamnagar- India at best pricing
