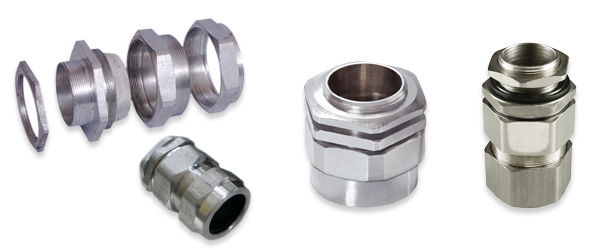

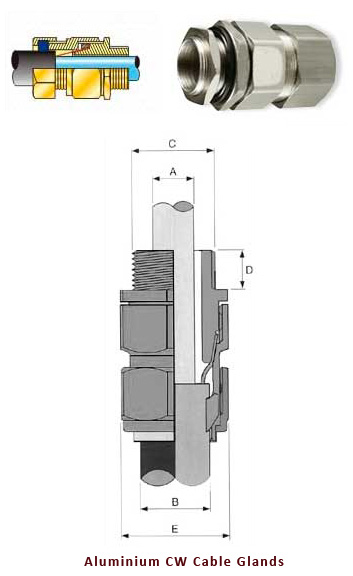

CW Cable Glands Aluminium
CW Cable Glands Aluminium |
| C W Cable Glands |
| Gland Size |
Standard Entry
Threads "C" other
options
/sizes |
Min. Thread Length "D" |
Seal Ranges |
Armour Wire
Dia. |
Max. Across Corner Dia "E" |
| Cable Dia. "A" Max. |
Cable
Diameter "B' |
| Metric |
NPT |
PG |
Standard Seal |
Thick Seal |
| Min. |
Max. |
Min. |
Max. |
208
/16 |
20 |
" |
11 |
15 |
8.6 |
8.0 |
13.4 |
5.5 |
9.9 |
0.9 |
24.4 |
| 20S |
20 |
" |
13.5 |
15 |
11.6 |
11.4 |
15.9 |
7.0 |
12.4 |
0.9
/1.25 |
26.6 |
| 20 |
20 |
" |
16 |
15 |
13.9 |
15.0 |
20.9 |
11.1 |
17.9 |
0.9
/1.25 |
33.3 |
| 25 |
25 |
3/4" |
21 |
15 |
19.9 |
20.3 |
27.4 |
15.0 |
23.9 |
1.25
/1.60 |
40.5 |
| 32 |
32 |
1" |
29 |
15 |
26.2 |
26.0 |
33.9 |
23.0 |
29.9 |
1.60
/2.00 |
51.0 |
| 40 |
40 |
1-1/4" |
36 |
15 |
32.1 |
31.0 |
40.4 |
26.6 |
35.9 |
1.60
/2.00 |
61.0 |
| 50S |
50 |
1-1/2" |
36 |
15 |
38.1 |
36.5 |
46.7 |
32.9 |
42.4 |
2.00
/2.50 |
66.5 |
| 50 |
50 |
2" |
42 |
15 |
44.0 |
43.0 |
53.1 |
30.3 |
49.9 |
2.00
/2.50 |
77.7 |
| 63S |
63 |
2" |
48 |
15 |
50.0 |
48.9 |
59.4 |
44.6 |
55.9 |
2.50 |
83.2 |
| 63 |
63 |
2-1/2" |
- |
15 |
55.9 |
58.0 |
65.9 |
51.5 |
58.9 |
2.50 |
86.7 |
| 75S |
75 |
2-1/2" |
- |
15 |
61.9 |
60.6 |
72.1 |
56.4 |
68.9 |
2.50 |
101.6 |
| 75 |
75 |
3" |
- |
15 |
67.9 |
64.9 |
78.5 |
62.7 |
74.9 |
2.50
/3.15 |
111.1 |
| 90 |
90 |
3-1/2" |
- |
- |
79.3 |
76.0 |
90.4 |
64.2 |
79.3 |
3.15 |
128.6 |
| All Dimensions in Millimeters |
| All the Cable Glands are available with accessories and Earth Tags.
Material:
Free Cutting Brass IS 319 type (i) or
Free Cutting Aluminium as per BS 249 CZ 121 CDA 360 grade Aluminium type (i) or
High Grade Free Cutting Aluminium or
Any special Aluminium Material Composition as per customers requirement
Threads :
ISO Metric (MM Threads).
Finish And Coating :
Natural, Nickle Plated, Tin Plated or any coating as per customer specification.
CW glands are weatherproof glands and can be used in corrosive conditions when protected with shroud.
Positive armour locking, effective earth continuity, increased mechanical strength.
Any kind of special Aluminium Cable Glands can be developed and supplied exactly as per customer specifications.
|
|
| Features |
|
To BS 6121 pt. most suitable for SWA plastic or rubber sheathed cable Outer seal grips sheath of cable. for use in most climatic conditions Weather proof and water proof design. Has separate armour lock rings. can be supplied with integral earth facility. |
| Gland Size |
|
20mm 25mm 32mm 40mm 16mm 50mm 63mm 50mms 75mm 90mm 1/2 3/4 1 11/4 11/2 2 2/12 NPT M12 m16 M20 M25 M32 M40 M50 M63 M75 threaded cable glands Metric fittings
|
| IP Rating |
|
IP 66 |
|
We are one of the leading manufacturers suppliers exporters of CW Cable Glands Aluminium. Please contact us for all your needs of CW Cable Glands Aluminium from Jamnagar- India at best pricing.
